Product Description

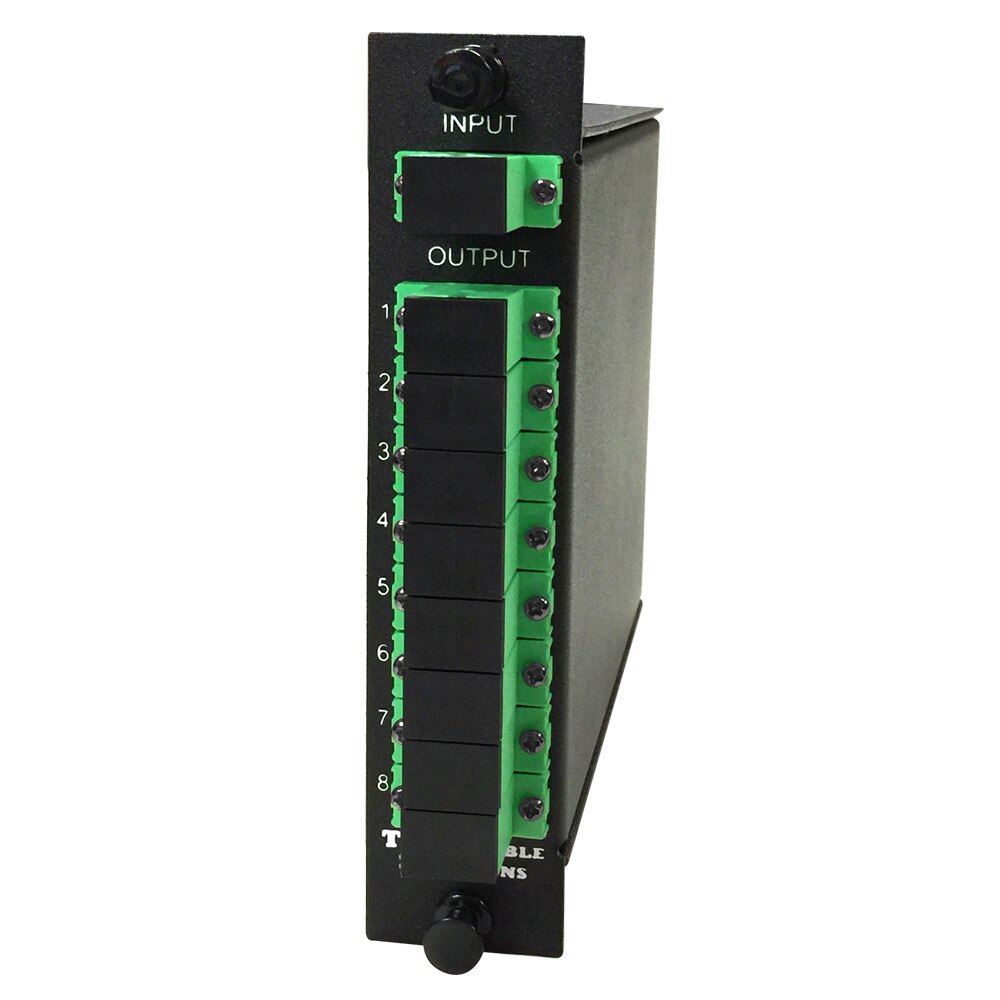

1×8 Planar Lightwave Circuit (PLC) Splitter in Standard LGX Cassette with SC/APC termination. Fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability.
Commonly used to distribute optical signals from Central Office (CO) to multiple premise locations in Fiber to the point (FTTx) deployments and other passive optical networks (e.g., EPON, GPON, BPON).
- Fits any LGX size panel and many popular panels
- Screw-socket design firmly fixes the adapter on the panel
- Silk screened port number for easy identification
- Eliminate the need for splicing machines and skilled personnel for deployment
Assembled in Springboro, Ohio.
Full Specs
Configuration Type: 1×8
Material: Black Steel
Fiber Type: G.657A1
Connector Type: SC/APC
Performance
Operating Wavelength: 1260-1650 nm
Max Input Power: 300 mW
Insertion Loss: ≤10.7 dB
Polarization Dependent Loss (PDL): ≤0.3 dB
Return Loss: ≥55 dB
Uniformity: ≤1.0 dB
Directivity: ≥55 dB
Operating Temperature Range: -20 to 70°C (-4 to 158°F)
Storage Temperature Range: -40 to 85°C (-40 to 185°F)
Approvals
Telcordia GR-1221 and GR-1209
Manufacturing Facility: ISO-9001 and TUV Certified”
