Product Description

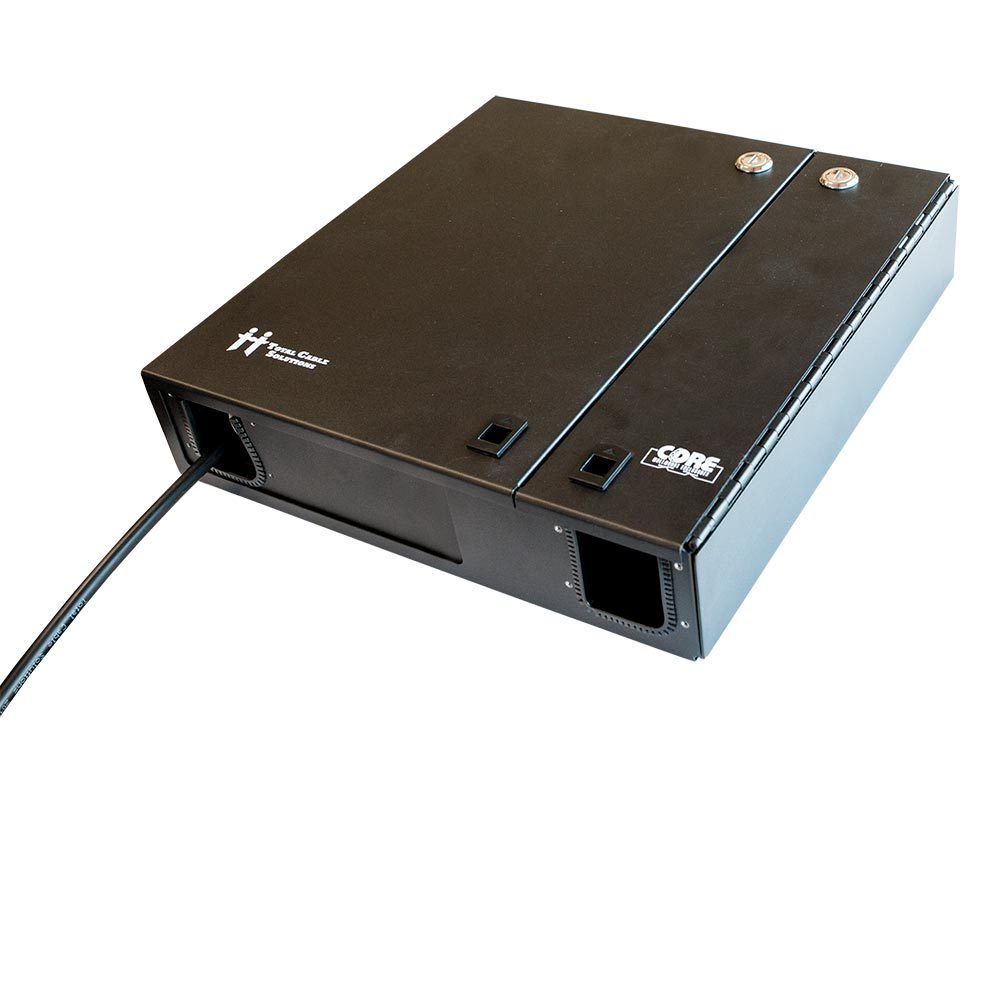

Designed for high density and easy access, our LGX Core™ Wall Mount Fiber Enclosure includes a patented removable inner core for simple adds and changes. Constructed from 16 gauge steel for performance and durability. Includes locking dual-hinge to protect contents.
Holds 2 LGX adapter panels up to 48 fibers (48 LC, 24 SC or ST).

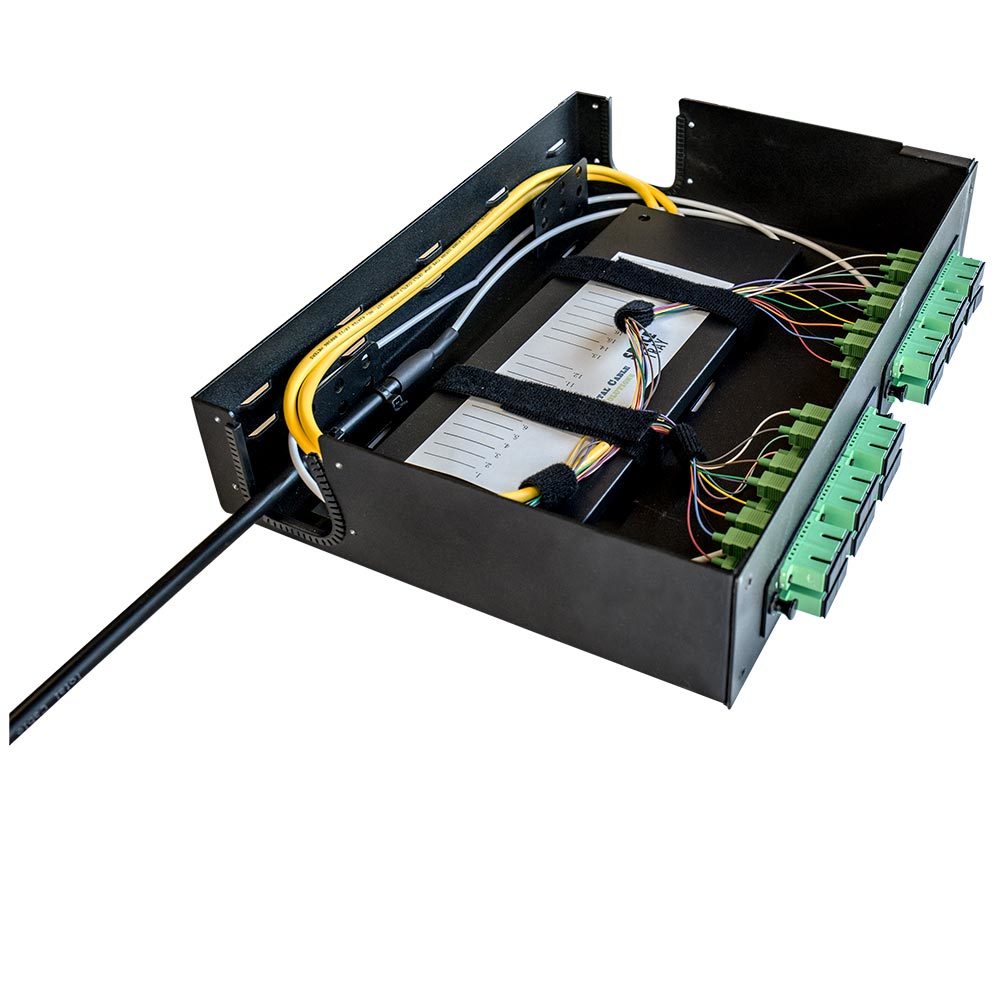

- Removable Inner Core – Perfect for table-level splicing, plugging, cleaning, and organizing
- Dual-hinge – Provides easy access anywhere
- 4 Non-captive Entires (top and bottom) – Protects trunk/cables
- Bubble Level – Secured on inside of enclosure for easy installation
Ships in durable cardboard box with anti-static EPE pearl cotton foam packaging.
Full Specs
Datasheet
Instruction Sheet
Technical DrawingConstruction
Enclosure Type: Wall Mountable
Dimensions (HxWxD): 3 in. x 13 in. x 13 in.
Material: 16 guage steel with black electrostatic polyester powder coat paint
Capacity: 2 LGX adapter panel (purchased seperately)
Fiber Count: Max. 48 (48 LC, 24 SC or ST)Included in box
2 enclosure keys
4 rubber cable entry grommets
8 zip ties
6 Velcro® ties
1 Velcro® wire management strap
