Product Description

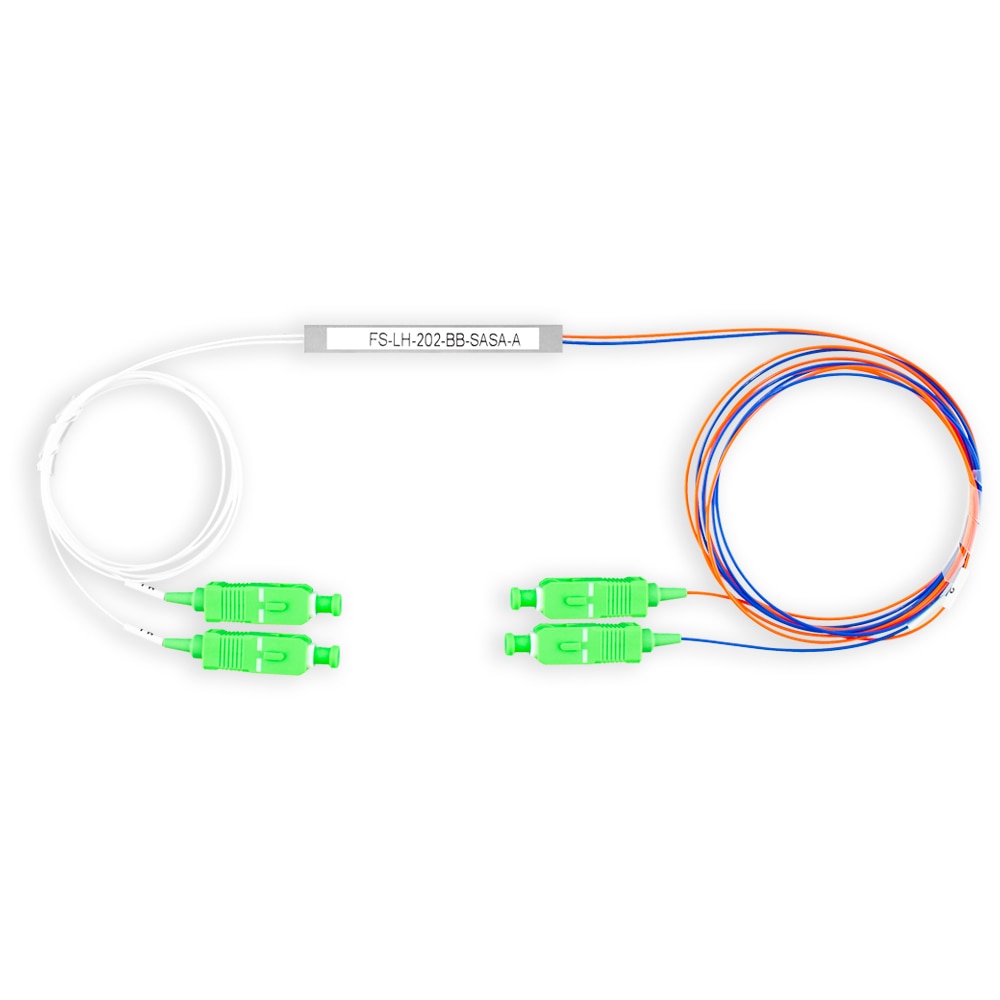

2×2 Planar Lightwave Circuit (PLC) Mini Module Splitter with SC/APC termination. Fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability.
Constructed with the highest quality Corning® Clearcurve Bend Insensitive Fiber (BIF) glass for the greatest installation speed and efficiency with high transmission rates and virtually no distortion.
Commonly used for connections in optical distribution box or network cabinet for Fiber to the point (FTTx) deployments, CATV links and other passive optical networks (e.g., GPON).
- 900 μm input/output G.657A1
- No splicing in PON system
- Ideal for GPON, FTTH/FTTx
- Corning® Clearcurve XB Bend Insensitive Fiber (BIF) glass
Assembled in Springboro, Ohio.
* colorpowercables.com is not affiliated with Corning Inc. All Corning product names are trademarks or registered trademarks of Corning Inc.
Full Specs
Datasheet
Construction
Configuration Type: 2×2
Fiber Type: G.657A1
Glass: Corning® Clearcurve XB Bend Insensitive Fiber (BIF)
Fiber Diameter: 900 μm
Fiber Length: 1 m input/1 m output
Connector Type: SC/APC
Performance
Operating Wavelength: 1260-1650 nm
Insertion Loss: ≤16.9 dB
Polarization Dependent Loss (PDL): ≤0.3 dB
Return Loss: ≥55 dB
Uniformity: ≤1.5 dB
Directivity: ≥55 dB
Operating Temperature Range: -20 to 70°C (-4 to 158°F)
Storage Temperature Range: -20 to 70°C (-4 to 158°F)
Approvals
Telcordia GR-1221 and GR-1209
Manufacturing Facility: ISO-9001 and TUV Certified
