APPLICATION
A combination utility locator and ferrous metal detector designed to locate
buried pipes and cables and to detect buried ferrous metal objects such as
valve box covers and buried tanks. The one-watt transmitter applies a locate
frequency by direct connection or induction. Optional induction clamps can be
used to clamp around a line and induce the locate signal onto it.
Metal Detector – Advanced filtering rejects materials such as bottle caps and
aluminum cans and zeros in on only ferrous materials. Manual gain control
allows it to be controlled and work closely to large metal objects such as
automobiles and chain link fences while still detecting targets underground. Will
locate through asphalt, concrete and in temporary conditions such as snow.
VIP-MAG – ViperMag Pipe and
Cable Locator
Optional Equipment:
VIP-CASE – ViperMag Hard Case
VIP-CL2/4/5 – Induction Clamp
(2”, 4”, 5”)
CI-A Frame – A-Frame Locator
Optional Equipment (shown below)

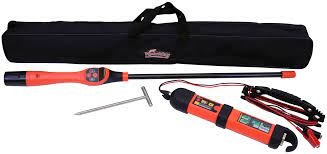

Standard Equipment
receiver, transmitter, direct connection cables, ground stake, soft sided case,
alkaline batteries, user guide
