Product Description

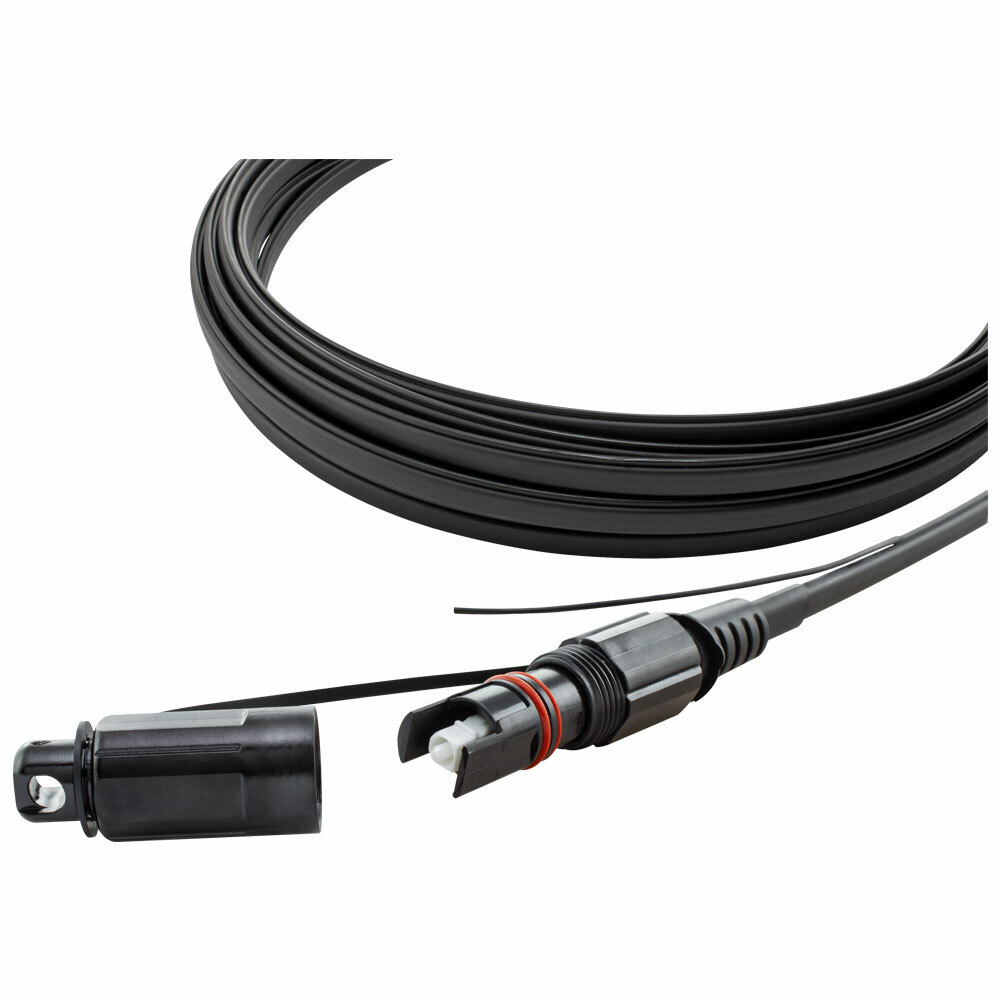

Optitap Compatible Flat Drop Cable designed for FTTx. Factory pre-terminated flat drop cable assembly provides fast and simple “plug and play” connection. Copper conductor for easy cable location in underground applications (non-toneable available).
Full Specs
Optitap to Blunt, Toneable Technical Drawing
Optitap to SC/APC, Toneable Technical Drawing
Optitap to SC/APC, Non-toneable Technical DrawingConstruction
Fiber Type: 0.9mm tight buffer (G657A1, blue)
Inner Strength Member: aramid yarn
Inner Sheath: (1) flame-retardant anti-UV LSZH, black, 2.9mm ±0.1mm diameter
Strength Member: (2) FRP glass fiber reinforced plastic rods, white, 1.6mm ±0.05mm diameter
Bare Copper Wire: 0.5mm ± 0.03mm diameter
Outer Sheath: Polyethylenne, black, 4.5×8.0×9.8mm ±0.3mm diameter, 0.75×0.9mm ±0.1mm thicknessTensile Properties
Tensile Strength (long-term): 400N
Tensile Strength (short-term): 1,350NEnvironmental Conditions
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Installation Temperature: 32°F to 158°F (0°C to 70°C)
Operating Temperature: 4°F to 158°F (-20°C to 70°C)
SPan Length Specifications
Maximum Span Length at 1% Sag
Heavy Loading: 50m
Medium Loading: 70m
Light Loading: 100mApprovals
ITU/T G.652.D G.657A
EN 60811-1-1
EN-60974-1-2-E1
EN-60974-1-2-E3
Optitap to SC/APC, Toneable Technical Drawing
Optitap to SC/APC, Non-toneable Technical DrawingConstruction
Fiber Type: 0.9mm tight buffer (G657A1, blue)
Inner Strength Member: aramid yarn
Inner Sheath: (1) flame-retardant anti-UV LSZH, black, 2.9mm ±0.1mm diameter
Strength Member: (2) FRP glass fiber reinforced plastic rods, white, 1.6mm ±0.05mm diameter
Bare Copper Wire: 0.5mm ± 0.03mm diameter
Outer Sheath: Polyethylenne, black, 4.5×8.0×9.8mm ±0.3mm diameter, 0.75×0.9mm ±0.1mm thicknessTensile Properties
Tensile Strength (long-term): 400N
Tensile Strength (short-term): 1,350NEnvironmental Conditions
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Installation Temperature: 32°F to 158°F (0°C to 70°C)
Operating Temperature: 4°F to 158°F (-20°C to 70°C)
SPan Length Specifications
Maximum Span Length at 1% Sag
Heavy Loading: 50m
Medium Loading: 70m
Light Loading: 100mApprovals
ITU/T G.652.D G.657A
EN 60811-1-1
EN-60974-1-2-E1
EN-60974-1-2-E3
