Product Description
Designed for durability and low insertion loss

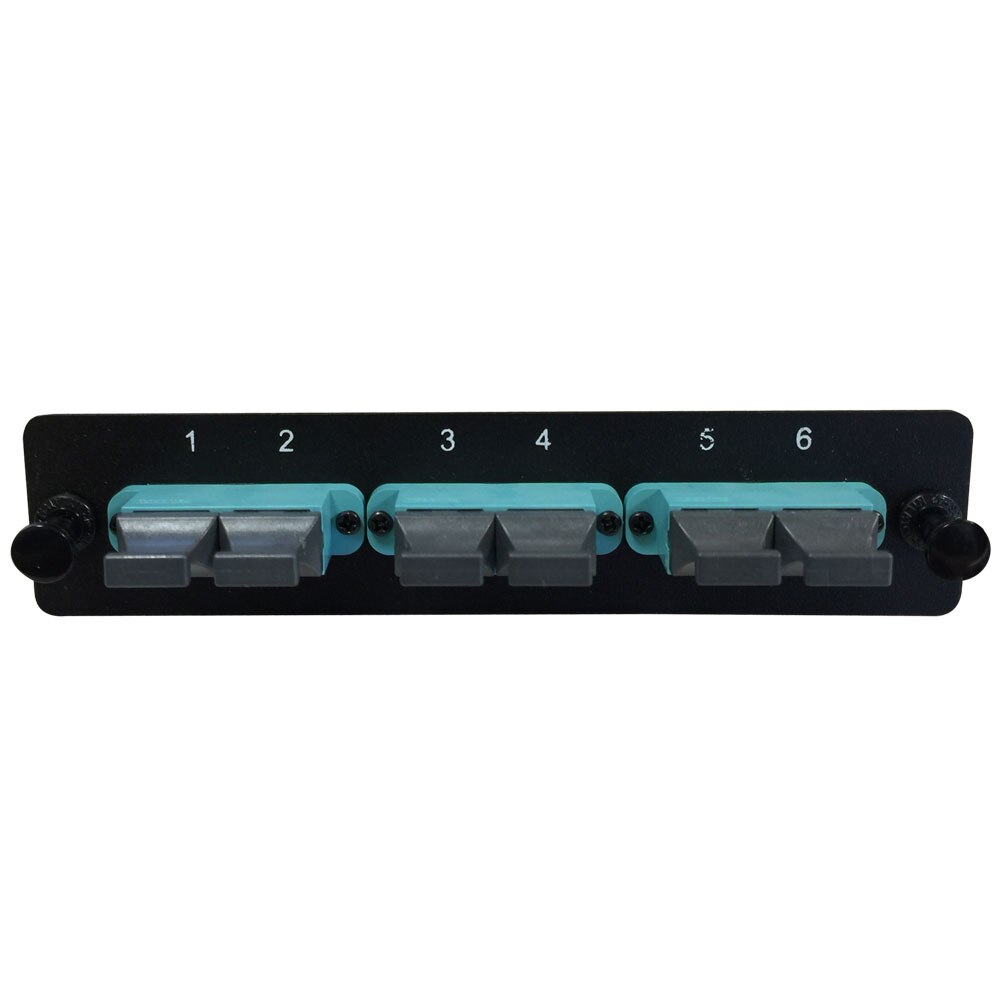

Our LGX Fiber Adapter Panel is constructed from 16 gauge steel and includes a one-piece adapter design preventing breakage from stress during changes or adds. All adapter sleeves are constructed of the finest material producing very low insertion loss:
- Zirconium Ceramic singlemode sleeve insertion loss 0.03 – 0.01 dB
- Phosphorous Bronze multimode sleeve insertion loss 0.04 – 0.02 dB
All panels include a clear numbering scheme silk screened on both sides making installs simple. Each adapters is securely attached to panel with screws and spring lock technology.
Full Specs
Construction
Panel Type: LGX
Panel Material: 16 guage steel with black electrostatic polyester powder coat paint
Adapter Type: MTP Duplex
Fiber Count: 6
Adapter material: Zirconium Ceramic sleeves (singlemode), Phoshorous Bronze (multimode)
Performance
Insertion Loss: 0.03 – 0.01 dB
Durability: >500 Matings
Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Approvals
GR-326-CORE
Flammability: UL94 V-0 Grade
RoHS Compliant
