Product Description
Commonly used in CATV, FTTX, telecommunication networks, and premise installations

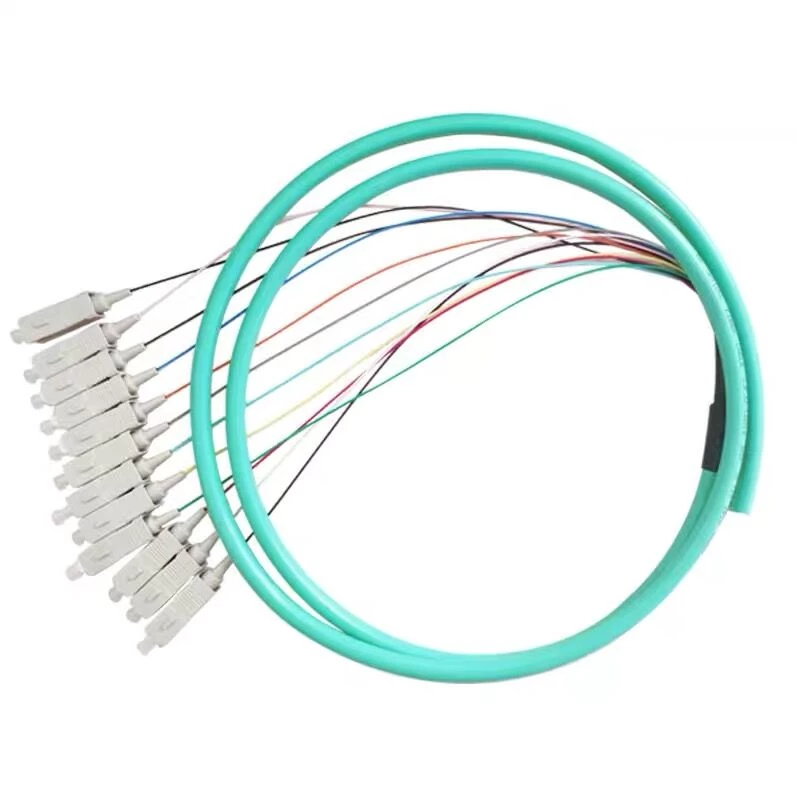

12 Fiber pack, OM4 900μm tight-buffered optical fiber with LC or SC connectors pre-installed on one end and a length of exposed fiber at the other end. Standard 3 meter length. The end of the pigtail is ready to be stripped and fusion or mechanically spliced to a single fiber of a multi-fiber trunk.
Designed for high fiber count splicing applications. Color coded to TIA-598-A industry standards for ease of use (blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua).
All colorpowercables.com pigtails feature low insertion loss and low back reflection:
- Insertion Loss: <0.25dB
- Return Loss: ±0.25dB
* colorpowercables.com is not affiliated with Corning Inc. All Corning product names are trademarks or registered trademarks of Corning Inc.
Full Specs
Construction
Fiber Count: 12
Fiber Type: OM4 50/125μm, Simplex
Glass: Corning® Clearcurve Bend Insensitive Fiber (BIF)
Polish Type: PC
Cable Type: Bunch, color coded to TIA-598-A industry standards
Connector Types: LC and SC
(ST available on request)
Jacket: Flammability rating OFNR (Riser), 9mm outside diameter, heat shrink to prevent zipcord from separating from connector
Performance
Insertion Loss: <0.25dB
Return Loss: ±0.25dB
Durability: >500 Matings
Operating Temperature: -20°C to 70°C (-4°F to 158°F)
Approvals
Telcordia GR-326-CORE
TIA/EIA-568-C.3IEEE 802.3zRoHS Compliant
Manufacturing Facility: ISO-9001 and TUV Certified
