Product Description

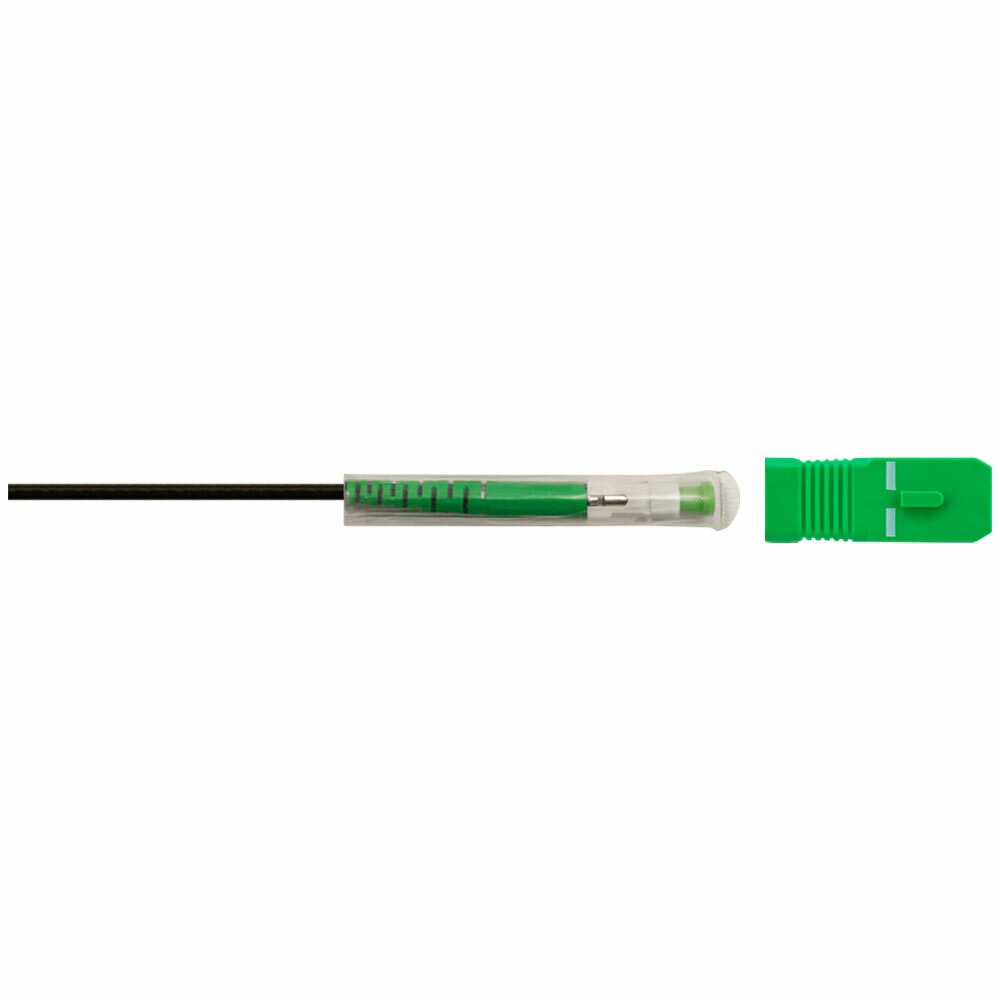

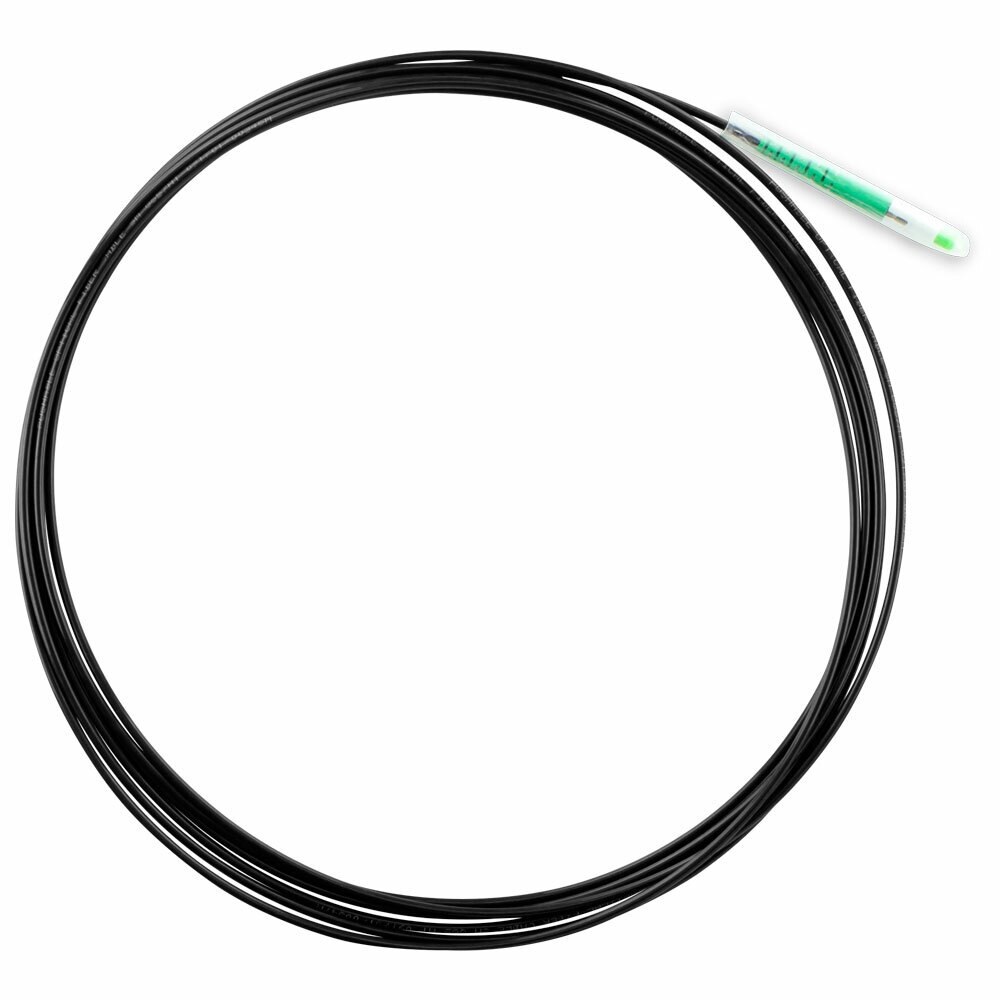

With the Pushable Fiber’s added rigidity, no more with cables kinking when pushing/pulling through walls or ducted pathways. The wall protective sleeve protects the connector while installing and its outer housing snaps into place. With these features, in-field deployment and installation time and cost are greatly reduced.
- Tool-less Installation – Wall protective sleeve is easily removed and outer housing snaps into place (drill 3/8in. hole to insert cable)
- Fast Deployment – Decreased deployment times and reduced installation costs by eliminating in-field splicing
- Rigorous Testing – Terminations designed and tested to Telcordia GR-326
- Ready to Ship – Stocked in Springboro, Ohio and ships the same day
Full Specs
Datasheet
Technical Drawing – ArmoredConstruction
Fiber Type: 250μm colored glass
Fiber Count: Simplex
Inner Jacket: LSZH, 0.9mm
Flexible Armored Tube: SUS 200CU, OD 1.45mm
Strength Member: Aramid yarn, water swellable yarn, steel wire
Jacket: PBT UV resistant, black, 3mm outside diameter
Connector Type: SC Pushable Assembly, Standard SC, and Blunt
Polish Type: APCPerformance
Insertion Loss: ≤0.3dB
Macro-bending Loss: <0.75dB (10mm radius at 1550nm)
Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Tensile Resistance: long-term 22.5lbs. (100N), short-term 45lbs. (200N)
Pressure Resistance: long-term 225lbs./10cm (1,000N), short-term 675lbs./10cm (3,000N)
Minimum Bending Radius: long-term 30mm, short-term 60mmApprovals
TIA/EIA-598-B (armored)
Terminations designed for Telcordia GR-326
RoHS Compliant
Technical Drawing – ArmoredConstruction
Fiber Type: 250μm colored glass
Fiber Count: Simplex
Inner Jacket: LSZH, 0.9mm
Flexible Armored Tube: SUS 200CU, OD 1.45mm
Strength Member: Aramid yarn, water swellable yarn, steel wire
Jacket: PBT UV resistant, black, 3mm outside diameter
Connector Type: SC Pushable Assembly, Standard SC, and Blunt
Polish Type: APCPerformance
Insertion Loss: ≤0.3dB
Macro-bending Loss: <0.75dB (10mm radius at 1550nm)
Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Tensile Resistance: long-term 22.5lbs. (100N), short-term 45lbs. (200N)
Pressure Resistance: long-term 225lbs./10cm (1,000N), short-term 675lbs./10cm (3,000N)
Minimum Bending Radius: long-term 30mm, short-term 60mmApprovals
TIA/EIA-598-B (armored)
Terminations designed for Telcordia GR-326
RoHS Compliant
