MOUNTING KIT REQUIRED FOR NEMA 4 COMPLIANCE.
Adapter panels and splice trays NOT included.
This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3995STP12 splice tray.
Wall Mount Fiber Patch Panel, NEMA 1 & 4 Rated, Holds 2 Adapter Panels and 2 Splice Trays, Up to 24 Ports, Beige
The FB23-3964WN4D2 is an outdoor rated NEMA 1 & NEMA 4 (mounting kit required for NEMA 4 compliance) wall mount fiber patch panel. The enclosure is designed for environments where durability, security, and weather resistance is required. The enclosure is manufactured out of aluminum and coated with polyester powder coat paint for corrosion resistance.

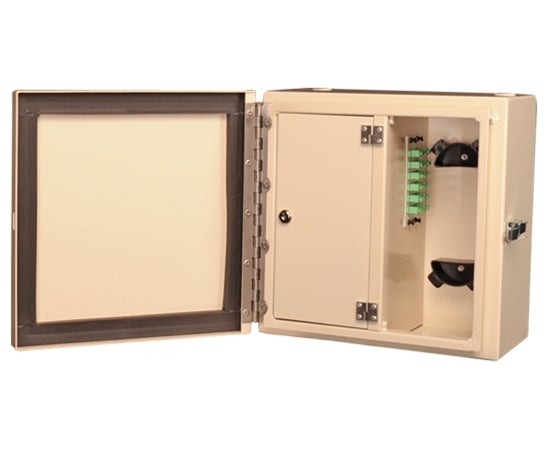

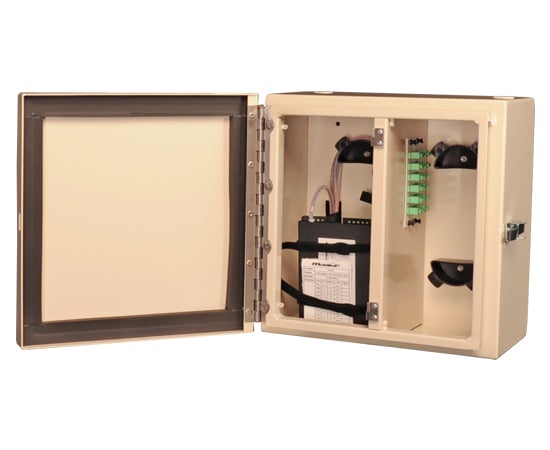

The Network compartment has a removable and lockable internal door with capacity for (2) Splice Trays, cable management, and (2) cable entry points. The Subscriber compartment has capacity for (2) Adapter Panels, cable management, and (2) cable entry points. The outer door is removable and pad-lockable. Enclosure also includes (2) Cable Strain Relief kits, (1) Danger “Laser” Sticker, and blank labels.
Optional Accessories: Pole Kit FB26-1175-PM and Mounting kit FB26-1146-WM (to make unit NEMA 4 compliant)
