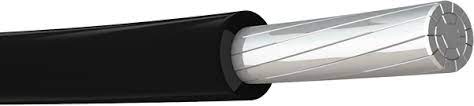

XHHW-2 Aluminum Conductor

• APPLICATION
1000/600 Volt Type XHHW-2 is intended for use as general purpose wiring for up to 1000 volt rated services in air conduit or other recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code at a maximum conductor temperature of 90 °C in wet or dry locations.
• FEATURES
Compact stranded 8000 Series aluminum alloy conductor. Insulation is an abrasion, moisture, heat and sunlight resistant black cross-linked polyethylene.
Cable can be installed without pulling lubricant.
Sizes 1/0 and larger are CT Rated.
• CERTIFICATE
UL (File No. E481201) UL Standard 44 and Federal Specification JC-30B NEC, ASTM B-800, B-801
Compliant to RoHS, Directive 2002/95/EC, ICEA S-95-658, NEMA WC 70
• COLORS
Sizes 6 to 1 gauge are stocked in Black, White, Red, Blue and Green.
Sizes 1/0 to 750MCM stocked in all the above colors plus Brown, Yellow, Orange, Gray, Green and Purple.

SPECS:

XHHW-2 Aluminum Conductor
